Brand Name : ThoYu
Model Number : TYYJSM-1200
Certification : CE
Place of Origin : China
MOQ : 1 set
Price : Negotiation
Payment Terms : L/C, D/A, Western Union, MoneyGram
Supply Ability : 20 sets per month
Delivery Time : 10-50 working days
Packaging Details : Strong wooden pallet for global shipping
Product name : Compression molded wood pallet machine
Warranty : 1 Year
Weight : 30 tons
After-sales service provided : Engineers available to service machinery overseas
Dimension (l*w*h) : 4200*2200*3500 mm
Voltage : Customized
keywords : compression pallet machine,molded wood pallet machine,wood pallet machine
4 Way Entry Recycled Compression-Molded Wood Pallet Machine
Introduction of 4 Way Entry Recycled Compression-Molded Wood Pallet Machine
4 way entry compression-molded wood pallet machine is used to produce pressed pallets from wood particles or fibers bonded together with urea-formaldehyde resin. Molded wood pallets with stackable legs are made of pre-defined specifications, however, a full board with wooden block pallets can be made as per the specifications and drawings of the customer.
Molded Wood Pallets Production Process
Ingredient inputs -> Chipper -> Flaker -> Drying Process -> Dust Elimination -> Blender Process -> Press Process -> Inspecion and Product Output
Compression-Molded Wood Pallet Machine Parameters
Compression-molded wood pallet machine | |
Model | TYYJ-1200 |
Voltage | customized |
Capacity | 240 pieces/day (24 hours) |
Power | 22 kW |
Hydraulic cylinder diameter | 350 mm |
Hydraulic cylinder quantity | 4 pieces |
Pressure | 0-1200 tons (adjustable) |
Shaping cycle | 300 seconds |
Weight | 30 tons |
Dimension | 4200*2200*3500 mm |
Remarks: it includes two sets of normal mould along with one set machine. |

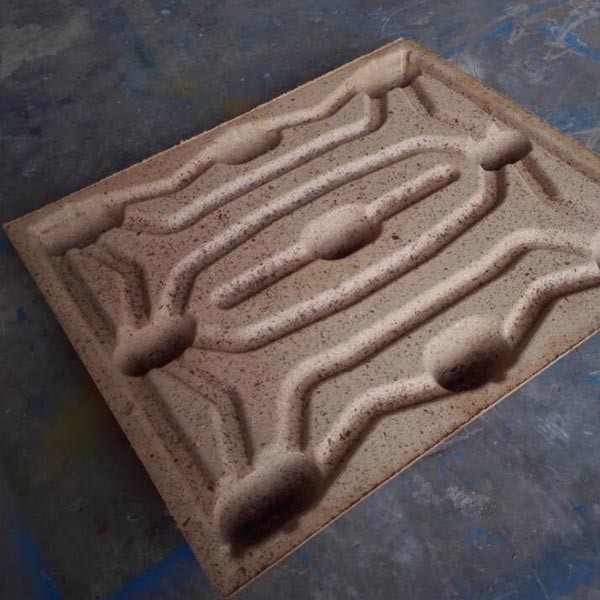

Molded Wood Pallets Features
![]() |

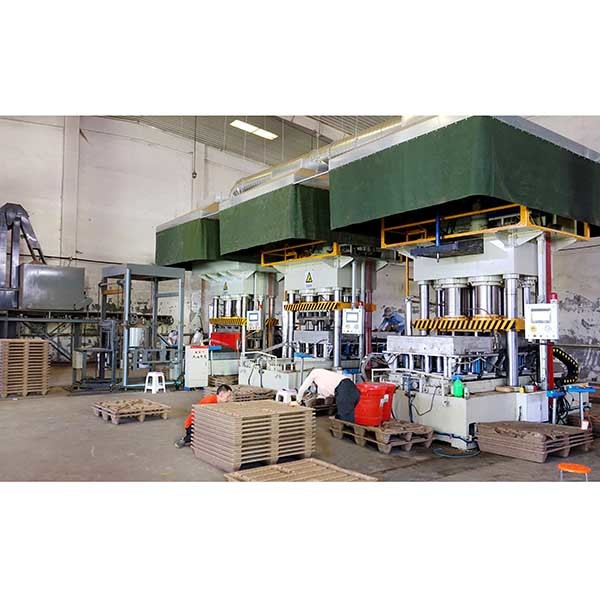

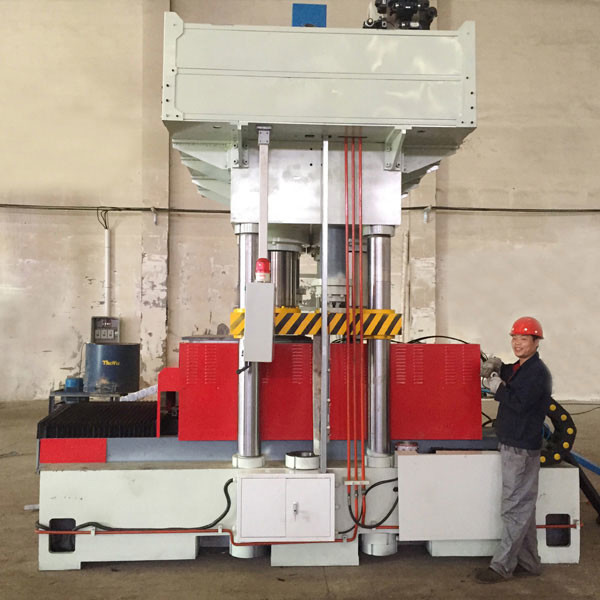

4 Way Entry Recycled Compression Molded Wood Pallet Machine Images |
